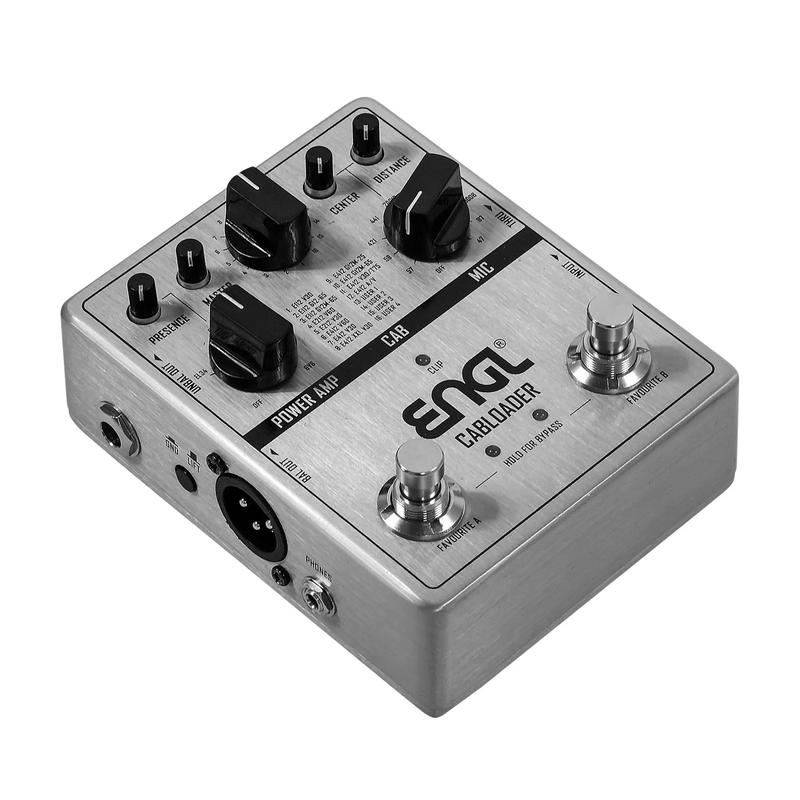

The ENGL CABLOADER is a fully-featured speaker cabinet simulator, IR Loader and DI box. This all-in-one solution can transform your pedalboard into a full DI rig, provide a perfect link from your amplifier to a recording interface, or even just give you a great way to hook up your pedals to your headphones for silent practice.

The CABLOADER sports a whole host of IR-based digital cabinet simulation models, as well as various microphone and optional power amp emulations. These allow you to digitally recreate the sound and feel of a fully micd guitar speaker and experiment with cab models you may never be able to actually experience in real life. Third party IR loading is also supported via the proprietary software, so you can load .wav IR files from any of your favorite manufacturers or studios.

As complicated as all the digital wizardry thats going on inside this little box is, the CABLOADER was designed with sheer simplicity and ease of use in mind! Even a if youre a complete newcomer to the world of digital cab sims and IR loaders, youll be able to quickly set up an amazing sound thanks to the intuitive controls. The quality of the simulations and the extensive connection options make this the perfect tool for anyone from beginners to professionals.

ADDITIONAL INFORMATION

Features

• Impulse Response Cabinet Simulator
• Microphone Simulator
• Poweramp Simulator
• Input Jack
• Instrument / Line level adjustment switch
• Thru Jack
• Unbalanced Out Jack
• Balanced Out Jack (XLR)
• Ground Lift Switch
• Headphones Out
• 9V DC power supply
• Micro USB Port for IR loading (PC and MAC)
• 12 Built-in ENGL Cabinets
• 4 User / 3rd Party Slots (accessible via USB)
• 10 Microphone Models + Microphone Off
• 4 Poweramp Simulations + Poweramp Off
• Favourite A Footswitch to save and recall Preset A
• Favourite B Footswitch so save and recall Preset B
• True Bypass

Controls

• Microphone Section: MIC selector, Center and Distance control
• CAB: CAB selector
• Power Amp: POWER AMP Selector, Presence and Master Control

Sampling Rateat least 44.1kHzSampling Accuracy24bitSignal to noise ratio100dBIR format.wavSampling Length1024 Samples (23.22ms)Power Requirements9V DC 300mA (negative center)Dimensions12 x 9.5 x 5.55 cmWeight0.405 kg
